AX8052F143-2-TB05

AX8052F143-2-TB05

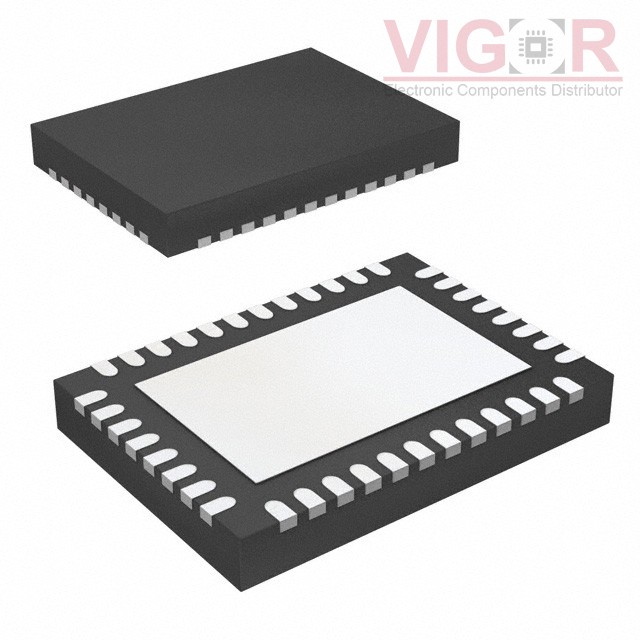

Image is for reference,
please contact us to get the real picture

Part No :

AX8052F143-2-TB05

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IC RF TXRX+MCU ISM<1GHZ 40VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
AX8052F143-2-TB05 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AX8052F143-2-TB05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX8052F143-2-TB05 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:TxRx + MCU
RF Family/Standard:General ISM < 1GHz
Protocol:-
Modulation:4FSK, ASK, FSK, GFSK, GMSK, MSK
Frequency:27MHz ~ 1.05GHz
Data Rate (Max):125kbps
Power - Output:16dBm (Max)
Sensitivity:-137dBm
Memory Size:64kB Flash, 8.25kB SRAM
Serial Interfaces:SPI, UART
GPIO:19
Voltage - Supply:1.8V ~ 3.6V
Current - Receiving:6.5mA ~ 11mA
Current - Transmitting:7.5mA ~ 48mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-QFN (7x5)
