MC33696FJAER2

MC33696FJAER2

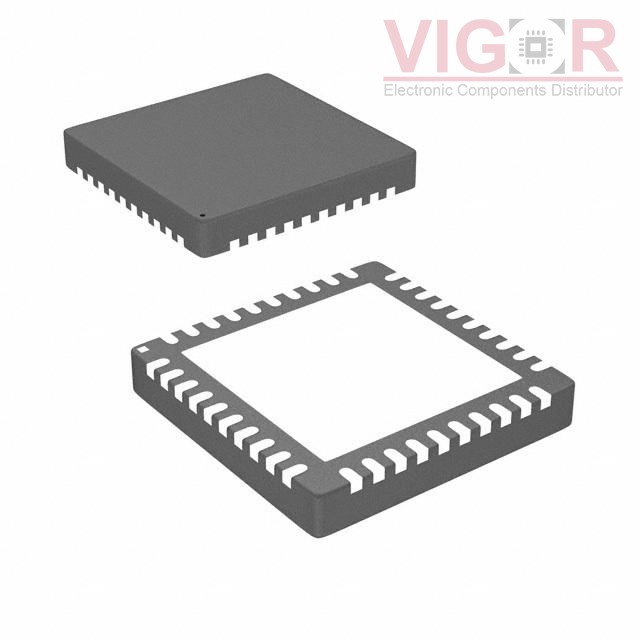

Image is for reference,
please contact us to get the real picture

Part No :

MC33696FJAER2

Manufacturer
NXP Semiconductors
Description
IC RF TXRX ISM<1GHZ 32VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
MC33696FJAER2 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MC33696FJAER2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MC33696FJAER2 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:TxRx Only
RF Family/Standard:General ISM < 1GHz
Protocol:-
Modulation:FSK, OOK
Frequency:290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz
Data Rate (Max):22.6kbps
Power - Output:7.25dBm
Sensitivity:-106.5dBm
Memory Size:-
Serial Interfaces:SPI
GPIO:-
Voltage - Supply:2.1V ~ 3.6V
Current - Receiving:10.3mA ~ 24mA
Current - Transmitting:6.1mA ~ 13.5mA
Operating Temperature:-20°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:32-VFQFN Exposed Pad
Supplier Device Package:32-QFN (5x5)
