ISM20736S-TR

ISM20736S-TR

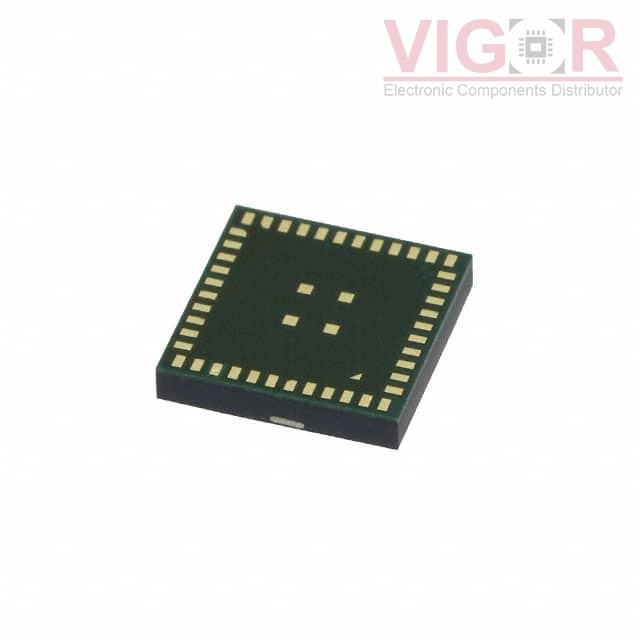

Image is for reference,
please contact us to get the real picture

Part No :

ISM20736S-TR

Manufacturer
Inventek Systems
Description
RX TXRX MOD BLUETOOTH CHIP SMD
Catalog
RF Transceiver Modules and Modems
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ISM20736S-TR PDF
Availability
32 pieces
Unit Price
$4.12000

Current price of ISM20736S-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ISM20736S-TR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
RF Family/Standard:Bluetooth
Protocol:Bluetooth v4.0
Modulation:-
Frequency:2.4GHz
Data Rate:-
Power - Output:2dBm
Sensitivity:-94dBm
Serial Interfaces:ADC, GPIO, I²C, PWM, SPI, UART
Antenna Type:Integrated, Chip
Utilized IC / Part:BCM20736S
Memory Size:512kB EEPROM
Voltage - Supply:1.62V ~ 3.63V
Current - Receiving:24mA
Current - Transmitting:24mA
Mounting Type:Surface Mount
Operating Temperature:-40°C ~ 85°C
Package / Case:48-SMD Module
