WLNB-SE-DP101

WLNB-SE-DP101

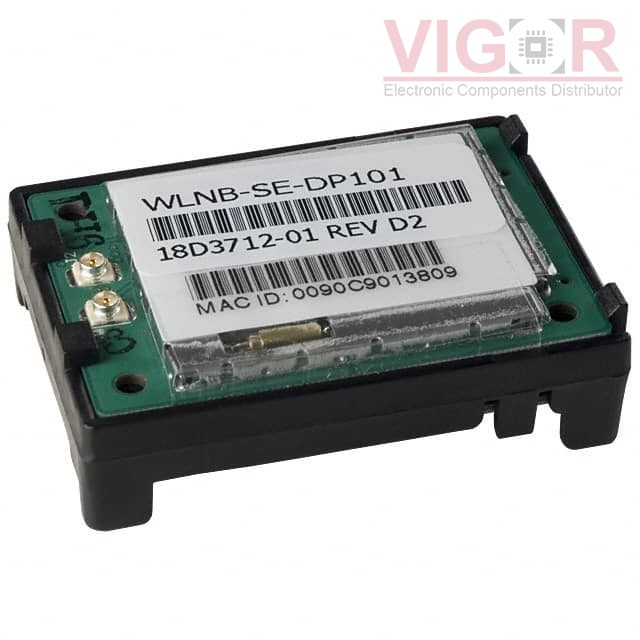

Image is for reference,
please contact us to get the real picture

Part No :

WLNB-SE-DP101

Manufacturer
Quatech / B+B SmartWorx
Description
RX TXRX MOD ISM > 1GHZ U.FL CHAS
Catalog
RF Transceiver Modules and Modems
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
WLNB-SE-DP101 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of WLNB-SE-DP101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WLNB-SE-DP101 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
RF Family/Standard:General ISM > 1GHZ
Protocol:-
Modulation:DBPSK, DQPSK, CCK
Frequency:2.4GHz
Data Rate:54Mbps
Power - Output:15dBm
Sensitivity:-90dBm
Serial Interfaces:-
Antenna Type:Antenna Not Included, U.FL
Utilized IC / Part:-
Memory Size:512kB Flash, 126kB SRAM
Voltage - Supply:3.3V
Current - Receiving:350mA
Current - Transmitting:420mA
Mounting Type:Chassis Mount
Operating Temperature:-40°C ~ 85°C
Package / Case:Module
