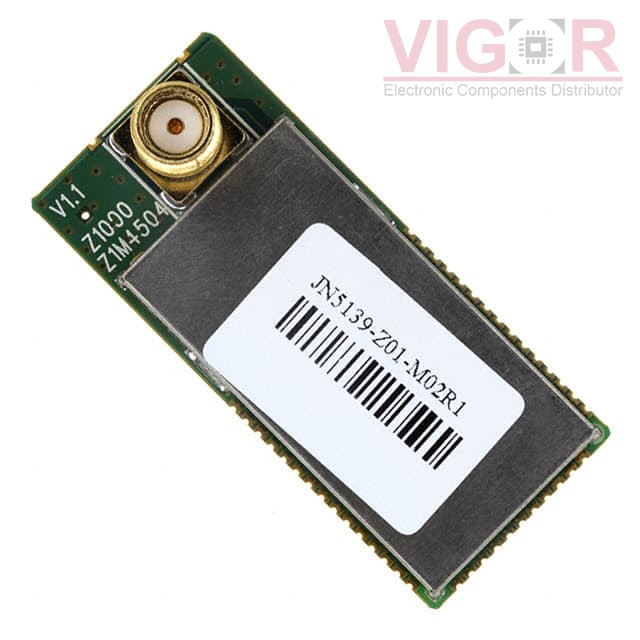

JN5139-Z01-M/02R1V

JN5139-Z01-M/02R1V

Image is for reference,
please contact us to get the real picture

Part No :

JN5139-Z01-M/02R1V

Manufacturer
NXP Semiconductors
Description
RX TXRX MODULE 802.15.4 SMA SMD
Catalog
RF Transceiver Modules and Modems
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
JN5139-Z01-M/02R1V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JN5139-Z01-M/02R1V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JN5139-Z01-M/02R1V Specifications
Type Description
Series:JN5139-Z01-M0x
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
RF Family/Standard:802.15.4
Protocol:Zigbee®
Modulation:-
Frequency:2.4GHz
Data Rate:-
Power - Output:19dBm
Sensitivity:-100dBm
Serial Interfaces:I²C, SPI, UART
Antenna Type:Antenna Not Included, SMA
Utilized IC / Part:-
Memory Size:192kB ROM, 96kB RAM
Voltage - Supply:2.2V ~ 3.6V
Current - Receiving:45mA
Current - Transmitting:125mA
Mounting Type:Surface Mount
Operating Temperature:-40°C ~ 85°C
Package / Case:Module
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT WP7607-1-G_1103529

WP7607-1-G_1103529

RX TXRX MODULE SMD EU GNSS
HOT MTSMC-H4-GP-P2-SP

MTSMC-H4-GP-P2-SP

RX TXRX MODULE CELL U.FL TH

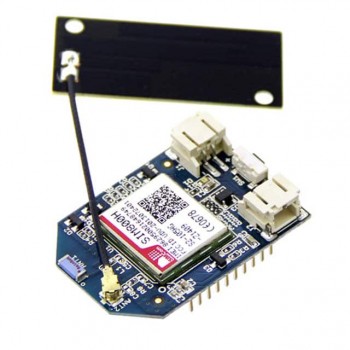

HOT 113050011
