TDK5100F

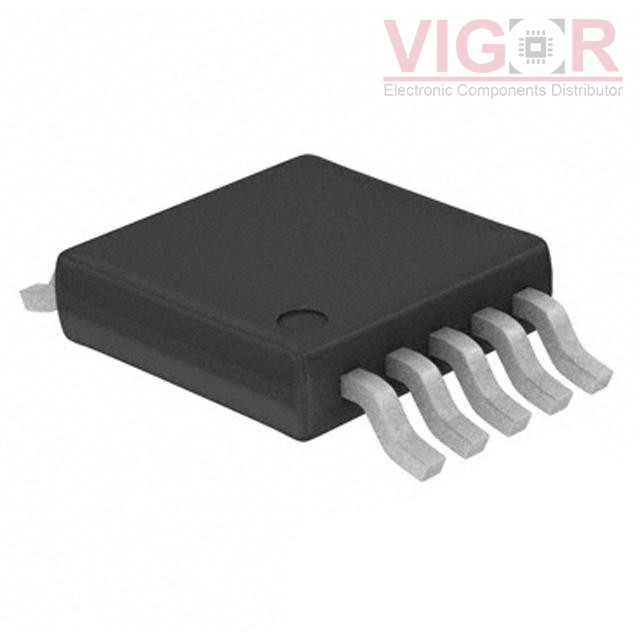

Image is for reference,
please contact us to get the real picture

Part No :: TDK5100F

Manufacturer: IR (Infineon Technologies)

Description: RF TX IC ASK/FSK 434MHZ 10TFSOP

Catalog: RF Transmitters

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: TDK5100F PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TDK5100F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TDK5100F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Frequency:	434MHz
Applications:	Alarm Systems, Communication Systems
Modulation or Protocol:	ASK, FSK
Data Rate (Max):	20kbps
Power - Output:	3.2dBm
Current - Transmitting:	7mA
Data Interface:	PCB, Surface Mount
Antenna Connector:	PCB, Surface Mount
Memory Size:	-
Features:	-
Voltage - Supply:	2.1V ~ 4V
Operating Temperature:	-25°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	10-TSSOP

Please confirm the specifications of the products when ordering.
