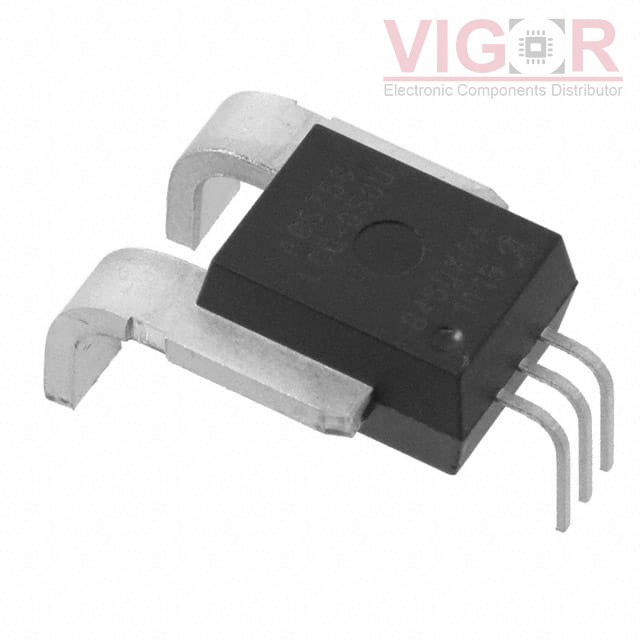

ACS756SCB-100B-PFF-T

Image is for reference,
please contact us to get the real picture

Part No :: ACS756SCB-100B-PFF-T

Manufacturer: Allegro MicroSystems

Description: SENSOR CURRENT HALL

Catalog: Current Sensors

Shipped from: HK warehouse

Expected Shipping Date: Jun 29 - Jul 03 2025

DataSheet: ACS756SCB-100B-PFF-T PDF

Availability: 0 pieces

Unit Price: ~~$3.33500~~

Current price of ACS756SCB-100B-PFF-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACS756SCB-100B-PFF-T Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Open Loop
Current - Sensing:	100A
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	20mV/A
Frequency:	DC ~ 120kHz
Linearity:	±1.75%
Accuracy:	±7%
Voltage - Supply:	3V ~ 5.5V
Response Time:	3µs
Current - Supply (Max):	14mA
Operating Temperature:	-20°C ~ 85°C
Polarization:	Bidirectional
Mounting Type:	Through Hole
Package / Case:	5-CB Formed Leads, PFF
Supplier Device Package:	5-CB Module

Please confirm the specifications of the products when ordering.
