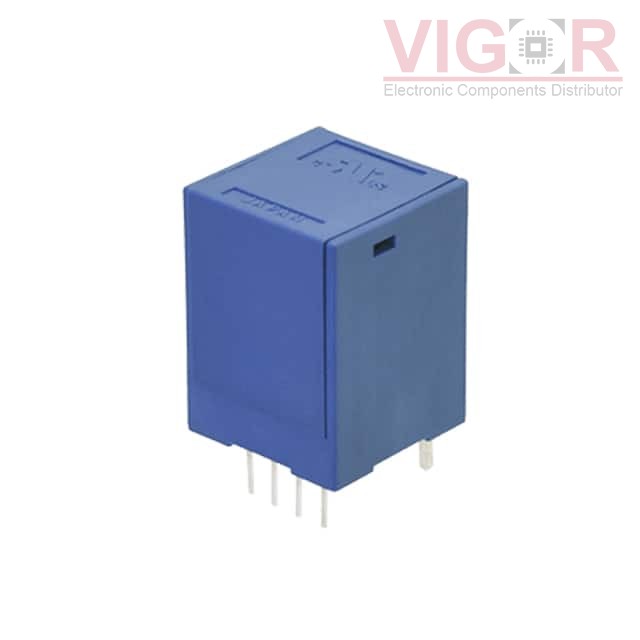

CS20120B

CS20120B

Image is for reference,
please contact us to get the real picture

Part No :

CS20120B

Manufacturer
CUI Devices
Description
CURRENT SENSOR,OPEN LOOP,20A,+/-
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CS20120B PDF
Availability
30 pieces
Unit Price
$28.23000

Current price of CS20120B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS20120B Specifications
Type Description
Series:CSXX120B
Package:Tray
Part Status:Active
For Measuring:AC
Sensor Type:Open Loop
Current - Sensing:20A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:-
Frequency:DC ~ 40kHz
Linearity:±0.5%
Accuracy:±2.4%
Voltage - Supply:±11.4V ~ 12.6V
Response Time:3µs
Current - Supply (Max):25mA
Operating Temperature:-10°C ~ 75°C
Polarization:Bidirectional
Mounting Type:Through Hole
Package / Case:Module
Supplier Device Package:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT L18P015D15

L18P015D15

SENSOR CURRENT HALL 15A AC/DC

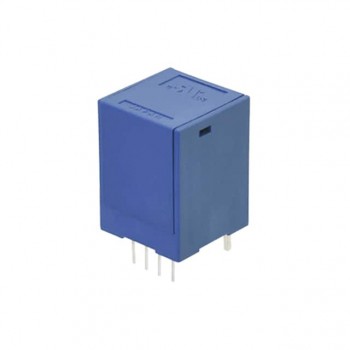

HOT CS1512U

CS1512U

CURRENT SENSOR,OPEN LOOP,15A,+12

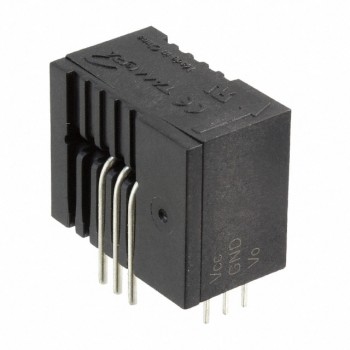

HOT F01P015S05L
