ACS716KLATR-25CB-T

ACS716KLATR-25CB-T

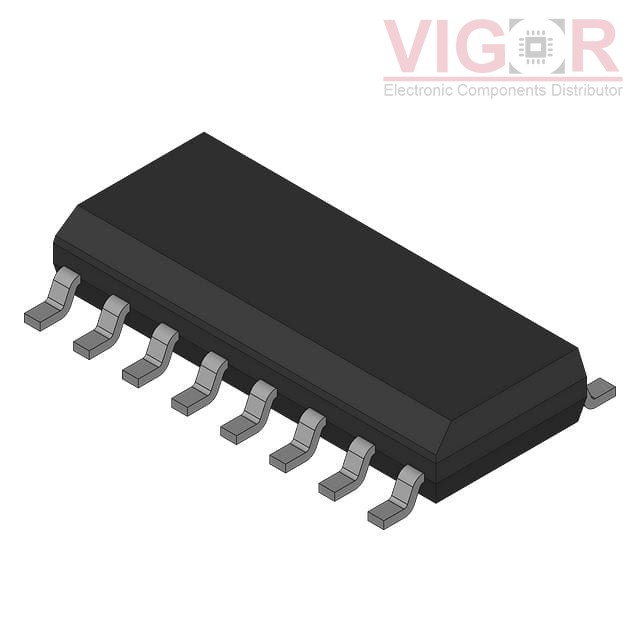

Image is for reference,
please contact us to get the real picture

Part No :

ACS716KLATR-25CB-T

Manufacturer
Allegro MicroSystems
Description
SENSOR CURRENT HALL 25A AC/DC
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ACS716KLATR-25CB-T PDF
Availability
0 pieces
Unit Price
$4.93000

Current price of ACS716KLATR-25CB-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACS716KLATR-25CB-T Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:25A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:18.5mV/A
Frequency:DC ~ 120kHz
Linearity:±0.25%
Accuracy:±2.9%
Voltage - Supply:3V ~ 3.6V
Response Time:4µs
Current - Supply (Max):11mA
Operating Temperature:-40°C ~ 125°C
Polarization:Bidirectional
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
