CS15120B

CS15120B

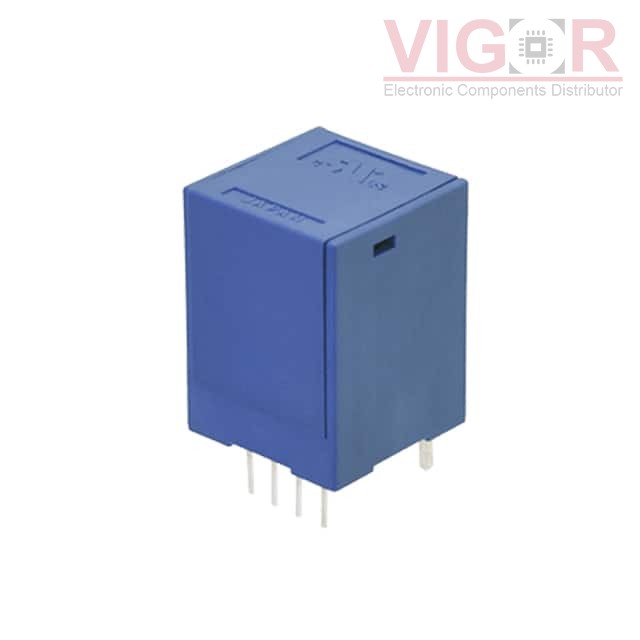

Image is for reference,
please contact us to get the real picture

Part No :

CS15120B

Manufacturer
CUI Devices
Description
CURRENT SENSOR,OPEN LOOP,15A,+/-
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
CS15120B PDF
Availability
30 pieces
Unit Price
$28.23000

Current price of CS15120B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS15120B Specifications
Type Description
Series:CSXX120B
Package:Tray
Part Status:Active
For Measuring:AC
Sensor Type:Open Loop
Current - Sensing:15A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:-
Frequency:DC ~ 40kHz
Linearity:±0.5%
Accuracy:±2.4%
Voltage - Supply:±11.4V ~ 12.6V
Response Time:3µs
Current - Supply (Max):25mA
Operating Temperature:-10°C ~ 75°C
Polarization:Bidirectional
Mounting Type:Through Hole
Package / Case:Module
Supplier Device Package:-
