ACHS-7122-000E

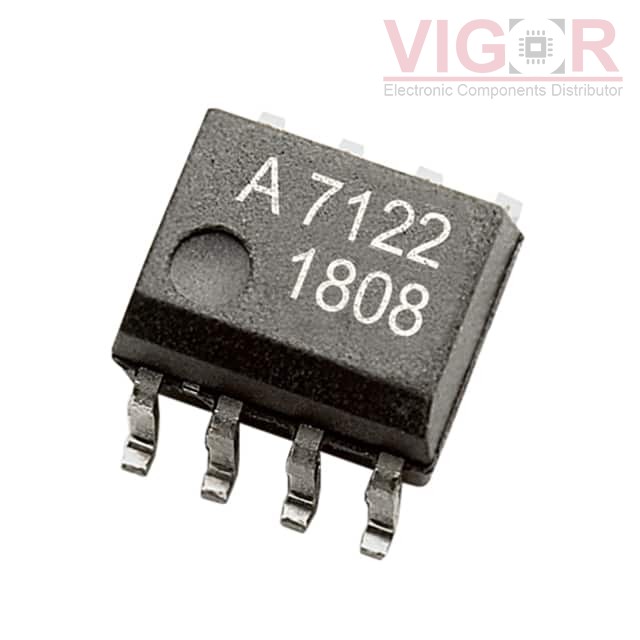

Image is for reference,
please contact us to get the real picture

Part No :: ACHS-7122-000E

Manufacturer: Broadcom

Description: HALL EFFECT IC LF

Catalog: Current Sensors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: ACHS-7122-000E PDF

Availability: 1831 pieces

Unit Price: ~~$3.74000~~

Current price of ACHS-7122-000E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACHS-7122-000E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect
Current - Sensing:	20A
Number of Channels:	-
Output:	Ratiometric, Voltage
Sensitivity:	100mV/A
Frequency:	80kHz
Linearity:	±0.18%
Accuracy:	-
Voltage - Supply:	4.5V ~ 5.5V
Response Time:	4µs
Current - Supply (Max):	15mA
Operating Temperature:	-40°C ~ 110°C
Polarization:	Bidirectional
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO

Please confirm the specifications of the products when ordering.
