ACS781LLRTR-100U-T

ACS781LLRTR-100U-T

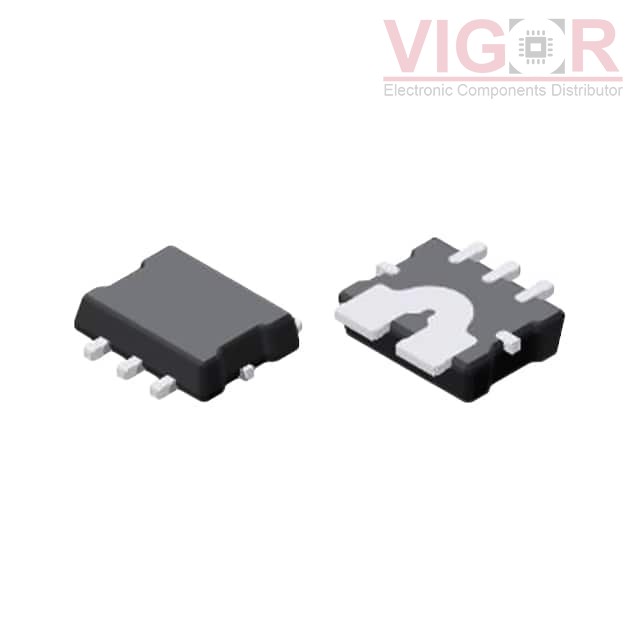

Image is for reference,
please contact us to get the real picture

Part No :

ACS781LLRTR-100U-T

Manufacturer
Allegro MicroSystems
Description
HIGH-PRECISION LINEAR HALL-EFFEC
Catalog
Current Sensors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ACS781LLRTR-100U-T PDF
Availability
9460 pieces
Unit Price
$4.79000

Current price of ACS781LLRTR-100U-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACS781LLRTR-100U-T Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
For Measuring:DC
Sensor Type:Hall Effect, Differential
Current - Sensing:100A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:26.4mV/A
Frequency:DC ~ 120kHz
Linearity:±1%
Accuracy:±1.5%
Voltage - Supply:3V ~ 3.6V
Response Time:3.6µs
Current - Supply (Max):15mA
Operating Temperature:-40°C ~ 150°C
Polarization:Unidirectional
Mounting Type:Surface Mount
Package / Case:7-PowerSMD Module
Supplier Device Package:7-PSOF
