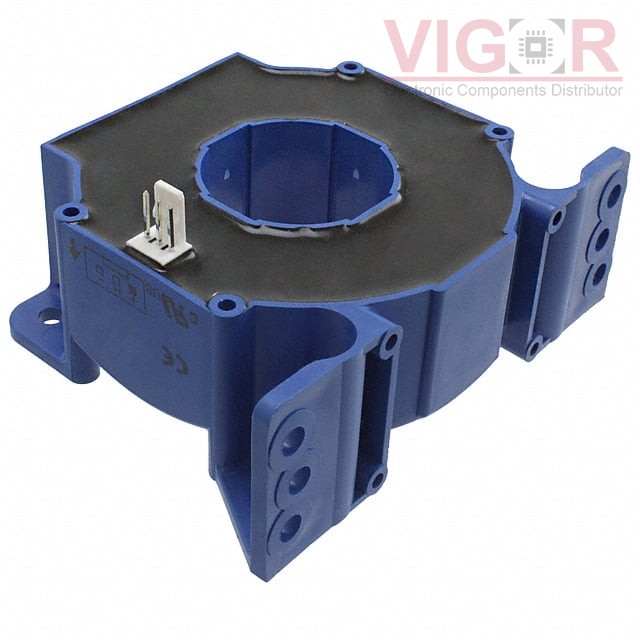

LF 505-S

Image is for reference,
please contact us to get the real picture

Part No :: LF 505-S

Manufacturer: LEM USA, Inc.

Description: SENSOR CURRENT HALL 500A AC/DC

Catalog: Current Sensors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: LF 505-S PDF

Availability: 182 pieces

Unit Price: ~~$158.40000~~

Current price of LF 505-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LF 505-S Specifications

Type	Description
Series:	LF
Package:	Tray
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Closed Loop
Current - Sensing:	500A
Number of Channels:	1
Output:	Ratiometric, Current
Sensitivity:	-
Frequency:	DC ~ 100kHz
Linearity:	±0.1%
Accuracy:	±0.6%
Voltage - Supply:	±15V ~ 24V
Response Time:	1µs
Current - Supply (Max):	124mA
Operating Temperature:	-40°C ~ 70°C
Polarization:	Bidirectional
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
