SI8513-C-IMR

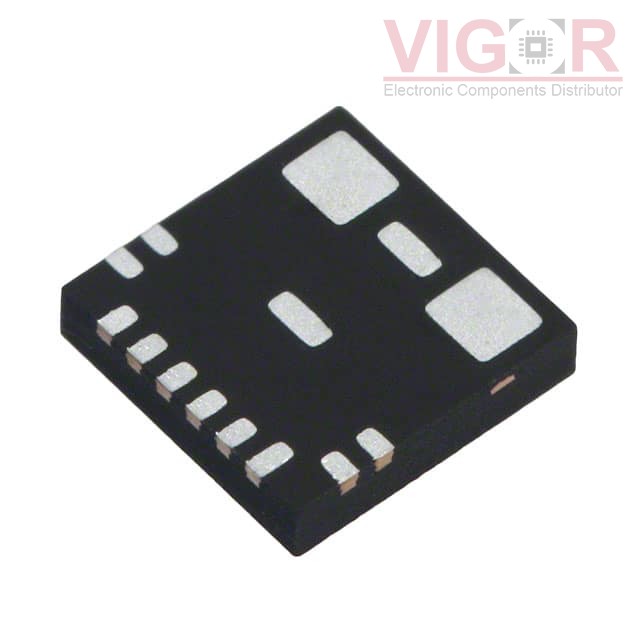

Image is for reference,
please contact us to get the real picture

Part No :: SI8513-C-IMR

Manufacturer: Silicon Labs

Description: SENSOR CURRENT XFMR 20A AC

Catalog: Current Sensors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SI8513-C-IMR PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SI8513-C-IMR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8513-C-IMR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
For Measuring:	AC
Sensor Type:	Transformer w/Conditioning
Current - Sensing:	20A
Number of Channels:	1
Output:	Configurable (3-Modes)
Sensitivity:	98mV/A
Frequency:	50kHz ~ 1MHz
Linearity:	-
Accuracy:	±5%
Voltage - Supply:	2.7V ~ 5.5V
Response Time:	-
Current - Supply (Max):	7mA
Operating Temperature:	-40°C ~ 125°C
Polarization:	Unidirectional
Mounting Type:	Surface Mount
Package / Case:	12-VFQFN
Supplier Device Package:	12-QFN (4x4)

Please confirm the specifications of the products when ordering.
