HEDS-9140#F00

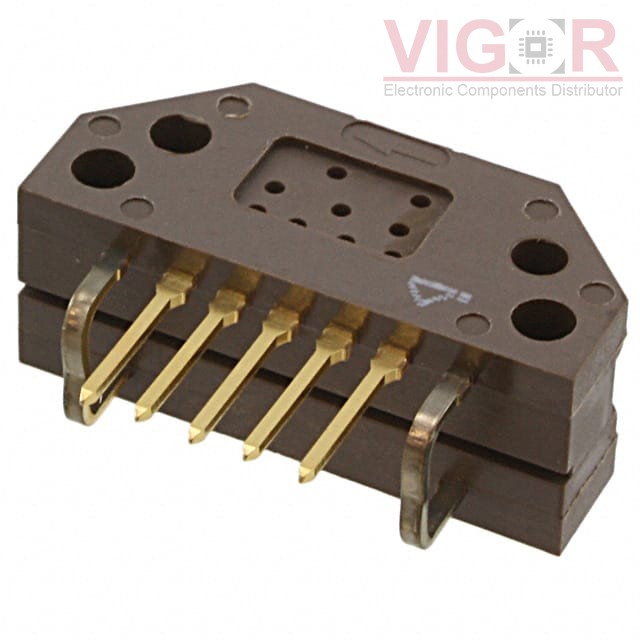

Image is for reference,
please contact us to get the real picture

Part No :

HEDS-9140#F00

Manufacturer
Broadcom
Description
ROTARY ENCODER OPTICAL 256PPR
Catalog
Encoders
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
HEDS-9140#F00 PDF
Availability
0 pieces
Unit Price
$23.63850

Current price of HEDS-9140#F00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:HEDS
Package:Bulk
Part Status:Active
Encoder Type:Optical
Output Type:Quadrature with Index (Incremental)
Pulses per Revolution:256
Voltage - Supply:5V
Actuator Type:Codewheel Not Included
Detent:No
Built in Switch:No
Mounting Type:Chassis Mount
Orientation:Vertical
Termination Style:Terminal Pins
Rotational Life (Cycles Min):-
