ACZ09BR1E-15FD1-20C10P

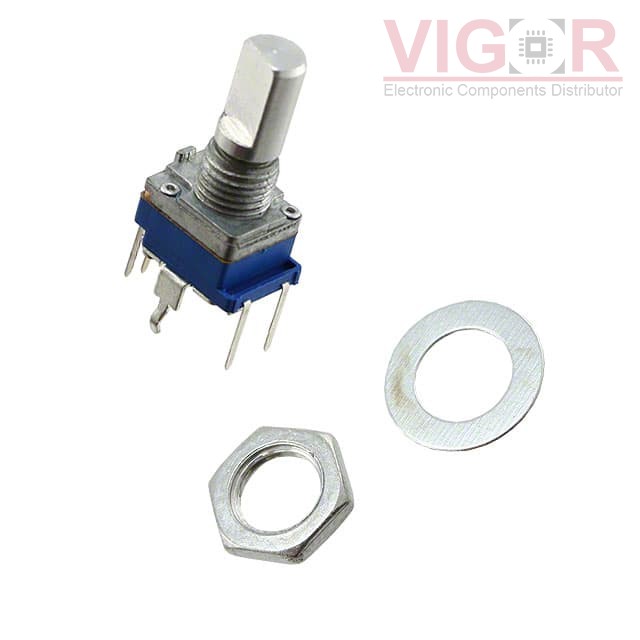

Image is for reference,
please contact us to get the real picture

Part No :: ACZ09BR1E-15FD1-20C10P

Manufacturer: CUI Devices

Description: ROTARY ENCODER INCREMENT 10PPR

Catalog: Encoders

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: ACZ09BR1E-15FD1-20C10P PDF

Availability: 0 pieces

Unit Price: ~~$2.07480~~

Current price of ACZ09BR1E-15FD1-20C10P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACZ09BR1E-15FD1-20C10P Specifications

Type	Description
Series:	ACZ09
Package:	Box
Part Status:	Active
Encoder Type:	Incremental
Output Type:	Quadrature (Incremental)
Pulses per Revolution:	10
Voltage - Supply:	5V
Actuator Type:	6mm Dia Flatted End
Detent:	Yes
Built in Switch:	Yes
Mounting Type:	Panel, PCB Through Hole
Orientation:	Vertical
Termination Style:	PC Pin
Rotational Life (Cycles Min):	30K
