DRV5055A2EDBZRQ1

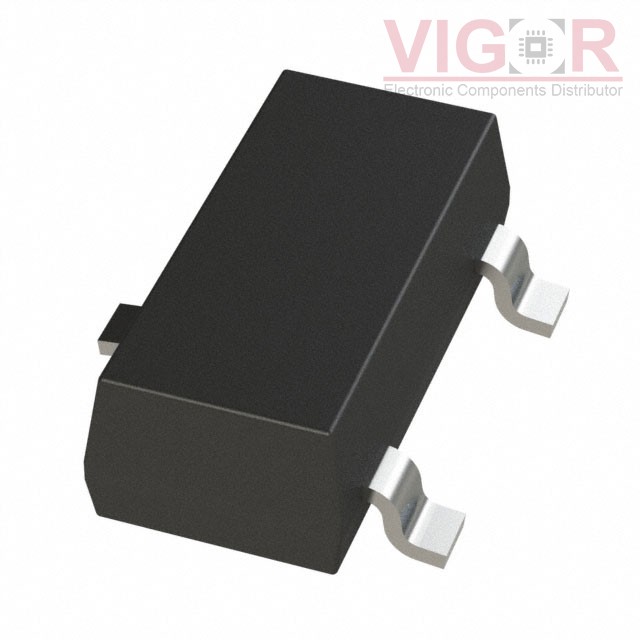

Image is for reference,
please contact us to get the real picture

Part No :: DRV5055A2EDBZRQ1

Manufacturer: Texas Instruments

Description: DRIVER

Catalog: Magnetic Sensors - Linear, Compass (ICs)

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: DRV5055A2EDBZRQ1 PDF

Availability: 5923 pieces

Unit Price: ~~$2.37000~~

Current price of DRV5055A2EDBZRQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DRV5055A2EDBZRQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Hall Effect
Axis:	Single
Output Type:	Analog Voltage
Sensing Range:	±42mT
Voltage - Supply:	3V ~ 3.63V, 4.5V ~ 5.5V
Current - Supply (Max):	10mA
Current - Output (Max):	1mA
Resolution:	-
Bandwidth:	20kHz
Operating Temperature:	-40°C ~ 150°C (TA)
Features:	Temperature Compensated
Supplier Device Package:	-
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3

Please confirm the specifications of the products when ordering.
