AH277AZ4-AG1

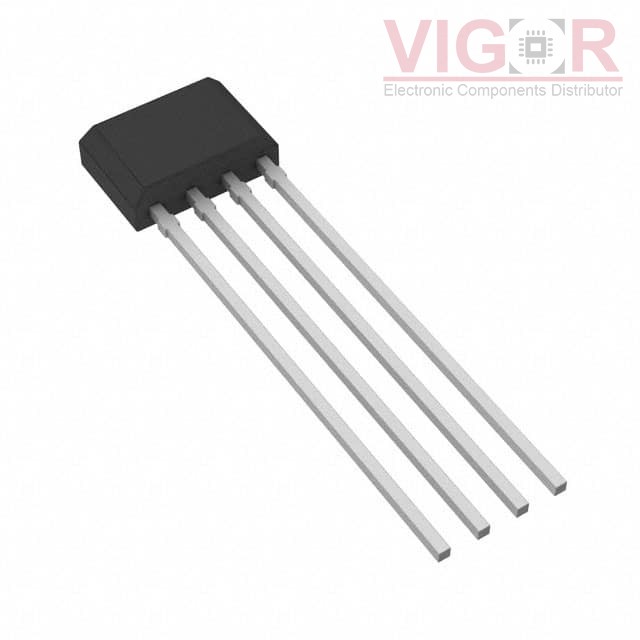

Image is for reference,
please contact us to get the real picture

Part No :: AH277AZ4-AG1

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MAGNETIC SWITCH LATCH TO94

Catalog: Magnetic Sensors - Switches (Solid State)

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: AH277AZ4-AG1 PDF

Availability: 0 pieces

Unit Price: ~~$0.35000~~

Current price of AH277AZ4-AG1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH277AZ4-AG1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Latch
Technology:	Hall Effect
Polarization:	South Pole
Sensing Range:	5mT Trip, -5mT Release
Test Condition:	25°C
Voltage - Supply:	3.5V ~ 16V
Current - Supply (Max):	16mA
Current - Output (Max):	400mA
Output Type:	Open Collector
Features:	Temperature Compensated
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Through Hole
Supplier Device Package:	TO-94
Package / Case:	4-SSIP

Please confirm the specifications of the products when ordering.
