AH3563Q-P-A

AH3563Q-P-A

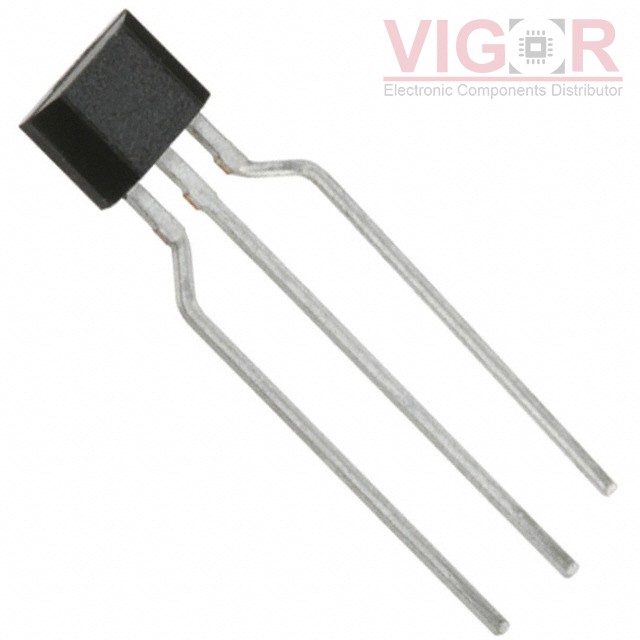

Image is for reference,
please contact us to get the real picture

Part No :

AH3563Q-P-A

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
HALL OMNIPOLAR SWITCH,SIP-3,AMMO
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AH3563Q-P-A PDF
Availability
397524000 pieces
Unit Price
$0.75000

Current price of AH3563Q-P-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3563Q-P-A Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Active
Function:Omnipolar Switch
Technology:Hall Effect
Polarization:North Pole, South Pole
Sensing Range:±4.5mT Trip, ±0.5mT Release
Test Condition:-40°C ~ 150°C
Voltage - Supply:3V ~ 28V
Current - Supply (Max):4mA
Current - Output (Max):55mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 150°C (TA)
Mounting Type:Through Hole
Supplier Device Package:3-SIP
Package / Case:3-SIP, Formed Leads
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
