AH3781-P-B

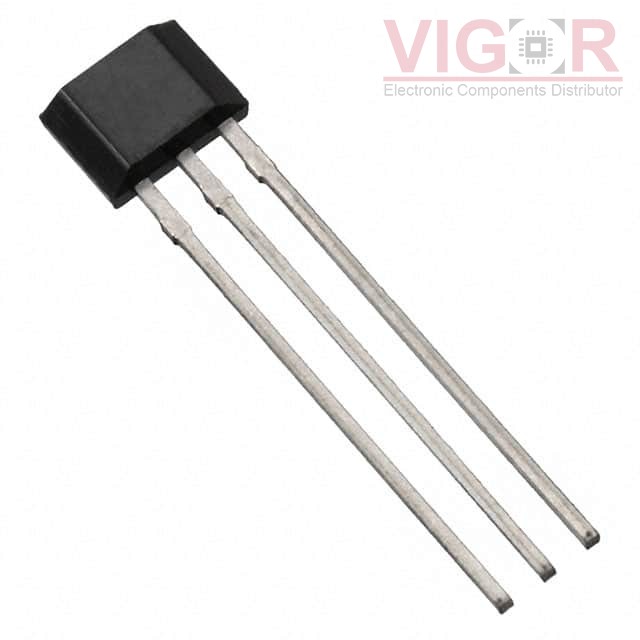

Image is for reference,
please contact us to get the real picture

Part No :: AH3781-P-B

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MAGNETIC SWITCH LATCH 3SIP

Catalog: Magnetic Sensors - Switches (Solid State)

Shipped from: HK warehouse

Expected Shipping Date: Aug 19 - Aug 23 2025

DataSheet: AH3781-P-B PDF

Availability: 0 pieces

Unit Price: ~~$0.78000~~

Current price of AH3781-P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3781-P-B Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Function:	Latch
Technology:	Hall Effect
Polarization:	South Pole
Sensing Range:	4mT Trip, -4mT Release
Test Condition:	-40°C ~ 125°C
Voltage - Supply:	3V ~ 28V
Current - Supply (Max):	5.8mA
Current - Output (Max):	60mA
Output Type:	Open Drain
Features:	Temperature Compensated
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Through Hole
Supplier Device Package:	3-SIP
Package / Case:	3-SIP Module

Please confirm the specifications of the products when ordering.
