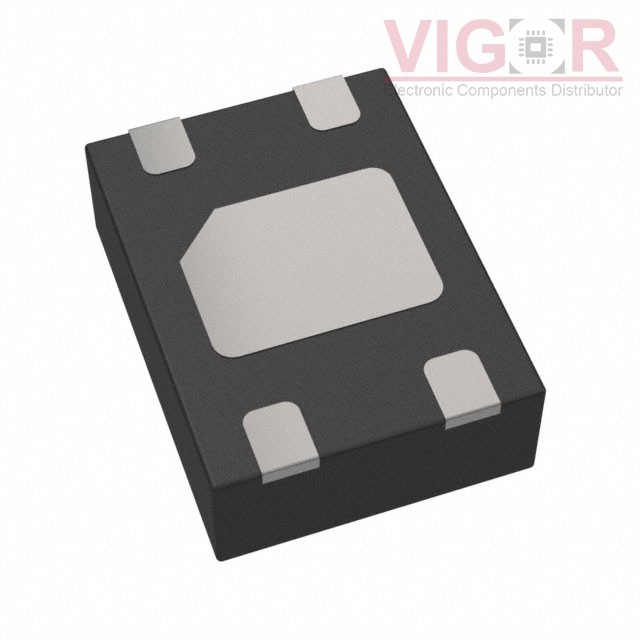

AH3360-FA-7

AH3360-FA-7

Image is for reference,
please contact us to get the real picture

Part No :

AH3360-FA-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH UNIPOLAR 4DFN
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
AH3360-FA-7 PDF
Availability
72000 pieces
Unit Price
$0.25125

Current price of AH3360-FA-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3360-FA-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Function:Unipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:4.6mT Trip, 0.9mT Release
Test Condition:-40°C ~ 85°C
Voltage - Supply:1.6V ~ 3.6V
Current - Supply (Max):8µA
Current - Output (Max):3mA
Output Type:Push-Pull
Features:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:X1-DFN1216-4
Package / Case:4-UFDFN Exposed Pad
