AH266Z4-AG1

AH266Z4-AG1

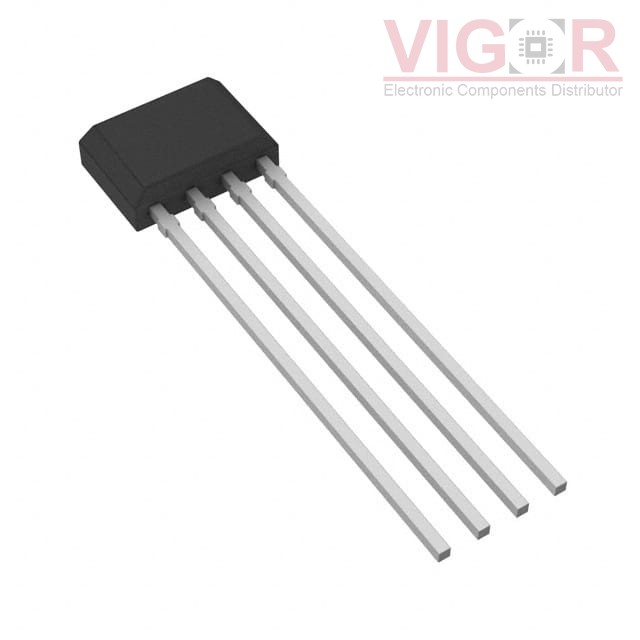

Image is for reference,
please contact us to get the real picture

Part No :

AH266Z4-AG1

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH LATCH TO94
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
AH266Z4-AG1 PDF
Availability
0 pieces
Unit Price
$0.28980

Current price of AH266Z4-AG1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH266Z4-AG1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Function:Latch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:7mT Trip, -7mT Release
Test Condition:25°C
Voltage - Supply:4V ~ 28V
Current - Supply (Max):10mA
Current - Output (Max):400mA
Output Type:Open Collector
Features:Temperature Compensated
Operating Temperature:-20°C ~ 85°C (TA)
Mounting Type:Through Hole
Supplier Device Package:TO-94
Package / Case:4-SIP
