AH3767Q-P-B

AH3767Q-P-B

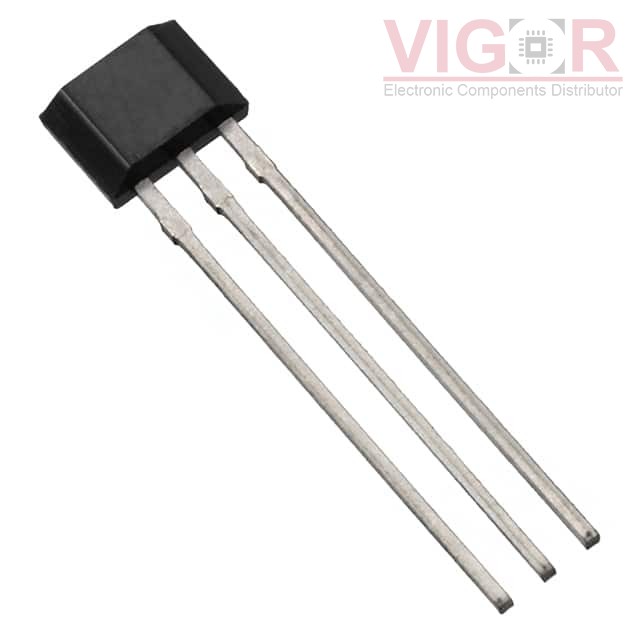

Image is for reference,
please contact us to get the real picture

Part No :

AH3767Q-P-B

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH LATCH 3SIP
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AH3767Q-P-B PDF
Availability
901 pieces
Unit Price
$1.08000

Current price of AH3767Q-P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3767Q-P-B Specifications
Type Description
Series:Automotive, AEC-Q100
Package:BulkBulk
Part Status:Active
Function:Latch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:17mT Trip, -17mT Release
Test Condition:-40°C ~ 150°C
Voltage - Supply:3V ~ 28V
Current - Supply (Max):4mA
Current - Output (Max):60mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 150°C (TA)
Mounting Type:Through Hole
Supplier Device Package:3-SIP
Package / Case:3-SIP Module
