S-5742NBH1B-Y3N2U

S-5742NBH1B-Y3N2U

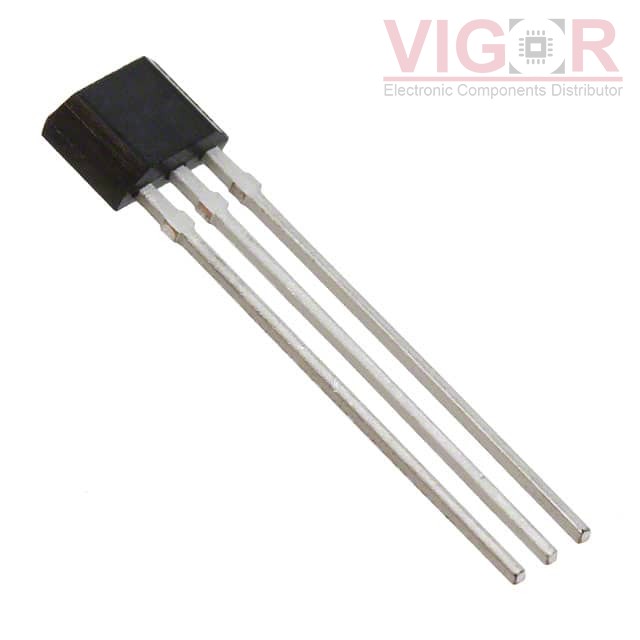

Image is for reference,
please contact us to get the real picture

Part No :

S-5742NBH1B-Y3N2U

Manufacturer
ABLIC U.S.A. Inc.
Description
BIPOLAR HALL EFFECT LATCH
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
S-5742NBH1B-Y3N2U PDF
Availability
0 pieces
Unit Price
$0.58080

Current price of S-5742NBH1B-Y3N2U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S-5742NBH1B-Y3N2U Specifications
Type Description
Series:S-5742B
Package:Bulk
Part Status:Active
Function:Bipolar Switch
Technology:Hall Effect
Polarization:North Pole, South Pole
Sensing Range:4.5mT Trip, -4.5mT Release
Test Condition:25°C
Voltage - Supply:3.5V ~ 26V
Current - Supply (Max):4mA
Current - Output (Max):20mA
Output Type:Open Drain
Features:-
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Through Hole
Supplier Device Package:TO-92S
Package / Case:TO-226-3, TO-92-3 Short Body
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
