HAL566UA-E

HAL566UA-E

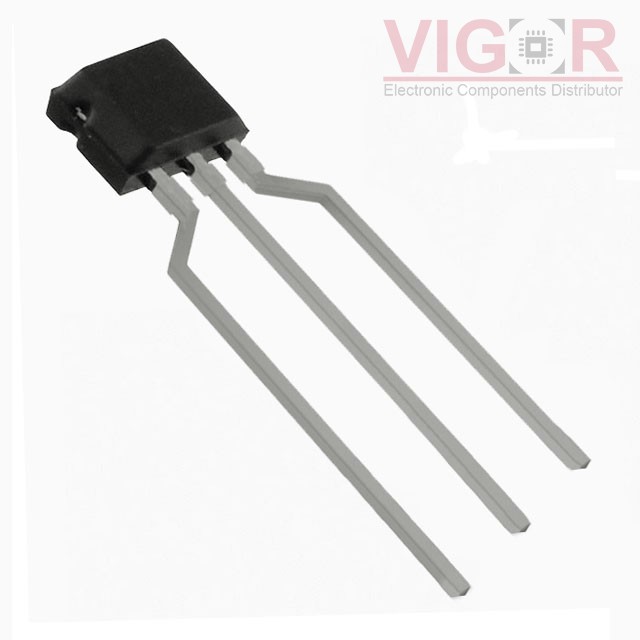

Image is for reference,
please contact us to get the real picture

Part No :

HAL566UA-E

Manufacturer
TDK Micronas
Description
IC HALL EFFECT SENSOR UNIPOLAR
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
HAL566UA-E PDF
Availability
0 pieces
Unit Price
$0.49830

Current price of HAL566UA-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HAL566UA-E Specifications
Type Description
Series:HAL® 566
Package:Bulk
Part Status:Last Time Buy
Function:Unipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:5.7mT Trip, 3.4mT Release
Test Condition:25°C
Voltage - Supply:4V ~ 24V
Current - Supply (Max):17mA
Current - Output (Max):-
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 100°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-92UA-1
Package / Case:TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
