AH1809-Z-7

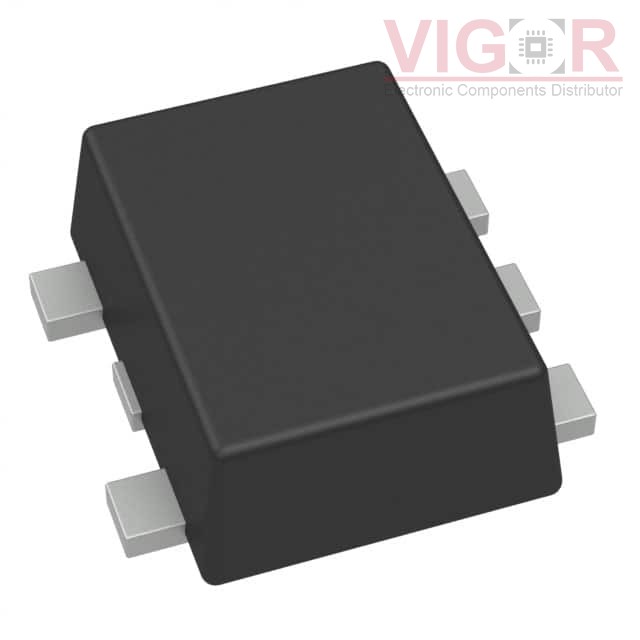

Image is for reference,
please contact us to get the real picture

Part No :: AH1809-Z-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MAGNETIC SWITCH OMNIPOLAR SOT553

Catalog: Magnetic Sensors - Switches (Solid State)

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: AH1809-Z-7 PDF

Availability: 3547 pieces

Unit Price: ~~$0.85000~~

Current price of AH1809-Z-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH1809-Z-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Omnipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±18.5mT Trip, ±17mT Release
Test Condition:	-40°C ~ 125°C
Voltage - Supply:	2.5V ~ 5.5V
Current - Supply (Max):	6mA
Current - Output (Max):	2.5mA
Output Type:	Open Drain
Features:	-
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-553
Package / Case:	SOT-553
