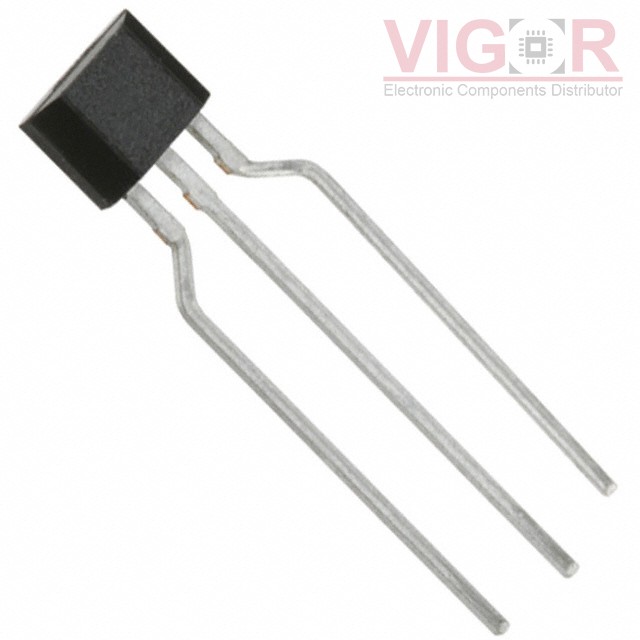

AH3761-PG-A

AH3761-PG-A

Image is for reference,
please contact us to get the real picture

Part No :

AH3761-PG-A

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MAGNETIC SWITCH LATCH 3SIP
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
AH3761-PG-A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AH3761-PG-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AH3761-PG-A Specifications
Type Description
Series:-
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Function:Latch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:6mT Trip, -6mT Release
Test Condition:25°C
Voltage - Supply:3V ~ 28V
Current - Supply (Max):6mA
Current - Output (Max):100mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Through Hole
Supplier Device Package:3-SIP
Package / Case:3-SIP, Formed Leads
