PDRV5023FAEDBZRQ1

PDRV5023FAEDBZRQ1

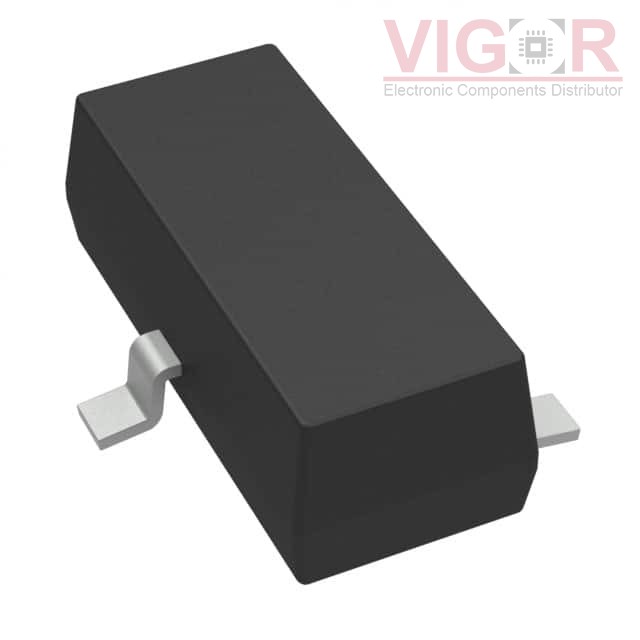

Image is for reference,
please contact us to get the real picture

Part No :

PDRV5023FAEDBZRQ1

Manufacturer
Texas Instruments
Description
MAGNETIC SWITCH UNIPOLAR SOT23-3
Catalog
Magnetic Sensors - Switches (Solid State)
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
PDRV5023FAEDBZRQ1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PDRV5023FAEDBZRQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PDRV5023FAEDBZRQ1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Tape & Reel (TR)
Part Status:Obsolete
Function:Unipolar Switch
Technology:Hall Effect
Polarization:South Pole
Sensing Range:6mT Trip, 0.5mT Release
Test Condition:-40°C ~ 125°C
Voltage - Supply:2.7V ~ 38V
Current - Supply (Max):2.7mA (Typ)
Current - Output (Max):30mA
Output Type:Open Drain
Features:Temperature Compensated
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3
Package / Case:TO-236-3, SC-59, SOT-23-3
