AMM20B5A1BHASL156

AMM20B5A1BHASL156

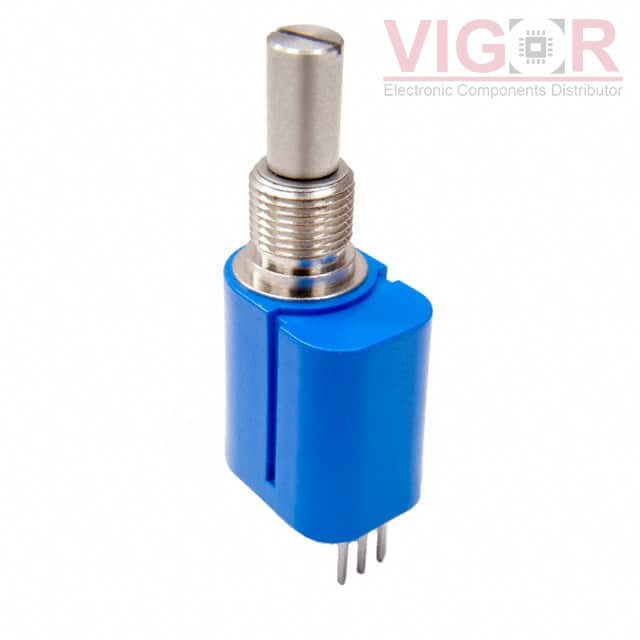

Image is for reference,
please contact us to get the real picture

Part No :

AMM20B5A1BHASL156

Manufacturer
J.W. Miller / Bourns
Description
SENSOR ROTARY 3960DEG PC PIN
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
AMM20B5A1BHASL156 PDF
Availability
50 pieces
Unit Price
$36.30000

Current price of AMM20B5A1BHASL156 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AMM20B5A1BHASL156 Specifications
Type Description
Series:AMM20B
Package:Bulk
Part Status:Active
For Measuring:Rotary Position
Technology:Hall Effect
Rotation Angle - Electrical, Mechanical:10° ~ 2520°, 0° ~ 3960°
Linear Range:-
Output:Analog Voltage
Output Signal:Counterclockwise Increase
Actuator Type:Slotted Shaft
Linearity:±0.5%
Resistance:-
Resistance Tolerance:-
Voltage - Supply:5V
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 125°C
Package / Case:Module, Slotted Shaft
Supplier Device Package:-
