AMS22B5A1BHASL329N

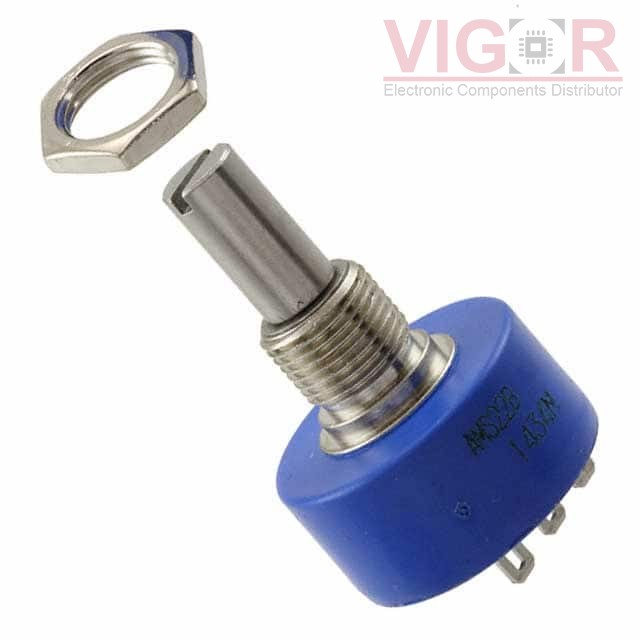

Image is for reference,
please contact us to get the real picture

Part No :: AMS22B5A1BHASL329N

Manufacturer: J.W. Miller / Bourns

Description: SENSOR ROTARY 290DEG SOLDER LUG

Catalog: Position Sensors - Angle, Linear Position Measuring

Shipped from: HK warehouse

Expected Shipping Date: May 18 - May 22 2024

DataSheet: AMS22B5A1BHASL329N PDF

Availability: 0 pieces

Unit Price: ~~$39.60000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of AMS22B5A1BHASL329N is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

AMS22B5A1BHASL329N Specifications

Type	Description
Series:	AMS22B
Package:	Bulk
Part Status:	Active
For Measuring:	Rotary Position
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	10° ~ 290°, Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Clockwise Increase
Actuator Type:	Slotted Shaft
Linearity:	±0.5%
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Operating Temperature:	-40°C ~ 125°C
Package / Case:	Module, Slotted Shaft
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
