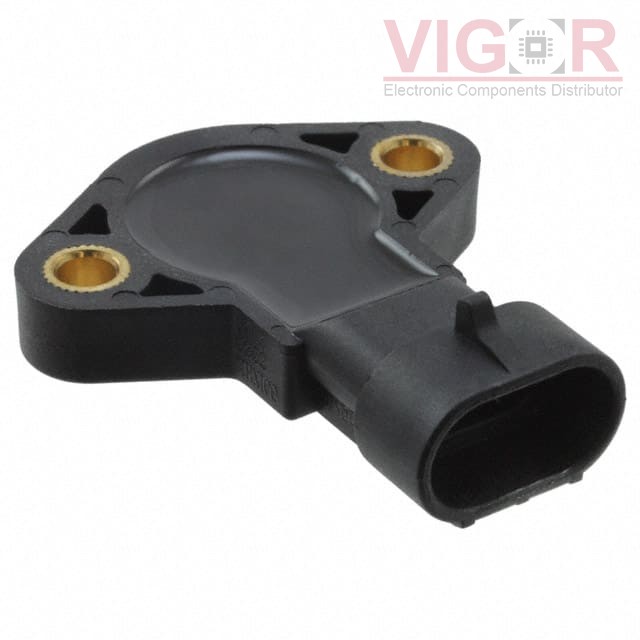

AN820001

Image is for reference,
please contact us to get the real picture

Part No :: AN820001

Manufacturer: Waldom Electronics

Description: SENSOR ANGLE 180DEG CONNECTOR

Catalog: Position Sensors - Angle, Linear Position Measuring

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: AN820001 PDF

Availability: 24 pieces

Unit Price: ~~$36.02000~~

Current price of AN820001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AN820001 Specifications

Type	Description
Series:	AN8
Package:	Bulk
Part Status:	Obsolete
For Measuring:	Angle
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	0° ~ 180°, Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Clockwise Increase
Actuator Type:	External Magnet, Not Included
Linearity:	±3.5%
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Chassis Mount
Termination Style:	Connector
Operating Temperature:	-40°C ~ 125°C
Package / Case:	Box with Connector
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
