3382H-1-503

3382H-1-503

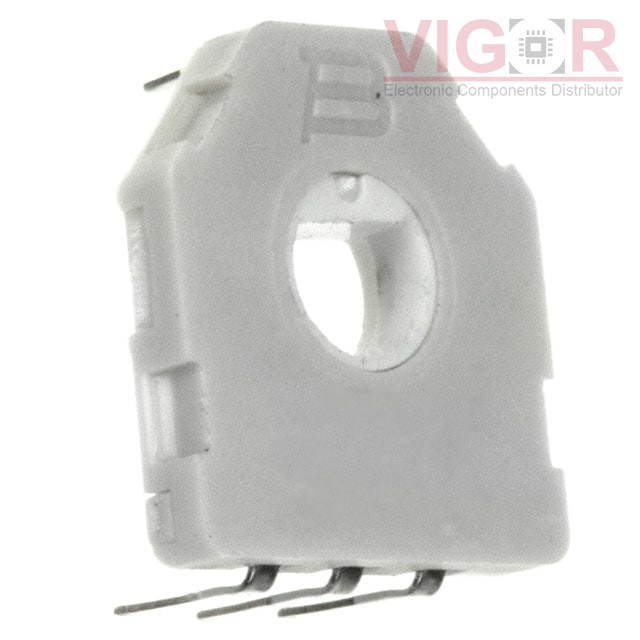

Image is for reference,
please contact us to get the real picture

Part No :

3382H-1-503

Manufacturer
J.W. Miller / Bourns
Description
SENSOR ROTARY 330DEG PC PIN
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
3382H-1-503 PDF
Availability
0 pieces
Unit Price
$1.40000

Current price of 3382H-1-503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3382H-1-503 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
For Measuring:Rotary Position
Technology:Resistive
Rotation Angle - Electrical, Mechanical:0° ~ 330°, Continuous
Linear Range:-
Output:Resistive
Output Signal:Clockwise Increase
Actuator Type:Hole for Shaft
Linearity:±2%
Resistance:50 kOhms
Resistance Tolerance:±30%
Voltage - Supply:-
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 120°C
Package / Case:Module, PC Pins
Supplier Device Package:-
