EVW-AE4001B14

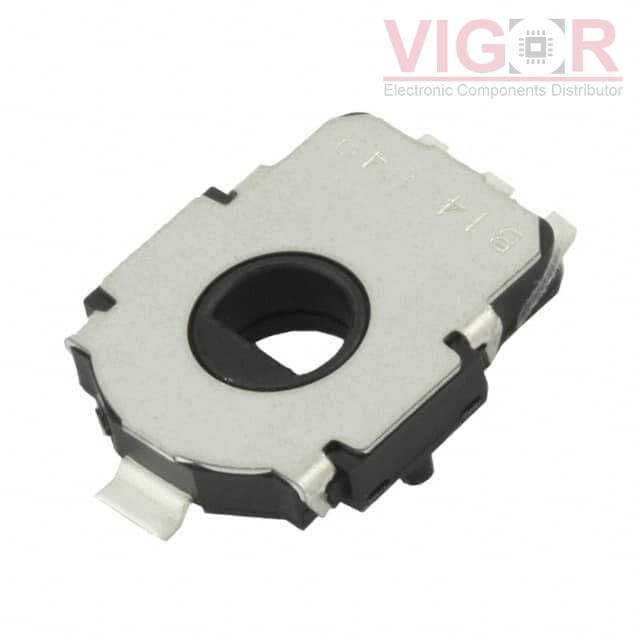

Image is for reference,
please contact us to get the real picture

Part No :: EVW-AE4001B14

Manufacturer: Panasonic

Description: SENSOR ROTARY 343DEG SMD

Catalog: Position Sensors - Angle, Linear Position Measuring

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: EVW-AE4001B14 PDF

Availability: 0 pieces

Unit Price: ~~$1.65000~~

Current price of EVW-AE4001B14 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EVW-AE4001B14 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	Rotary Position
Technology:	Resistive
Rotation Angle - Electrical, Mechanical:	0° ~ 343°
Linear Range:	-
Output:	Resistive
Output Signal:	-
Actuator Type:	Hole for Shaft
Linearity:	±2%
Resistance:	10 kOhms
Resistance Tolerance:	±30%
Voltage - Supply:	-
Mounting Type:	Surface Mount
Termination Style:	SMD (SMT) Tab
Operating Temperature:	-
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
