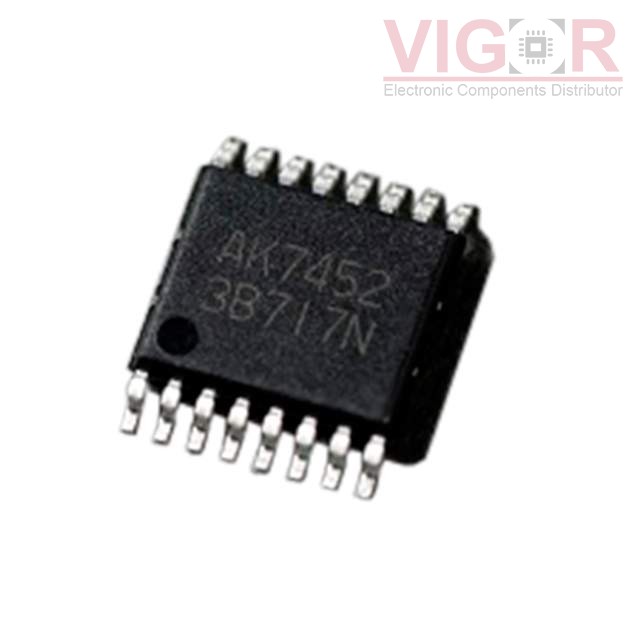

AK7452

Image is for reference,
please contact us to get the real picture

Part No :: AK7452

Manufacturer: Asahi Kasei Microdevices / AKM Semiconductor

Description: SENSOR ANGLE 360DEG SOLDER

Catalog: Position Sensors - Angle, Linear Position Measuring

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: AK7452 PDF

Availability: 0 pieces

Unit Price: ~~$6.74800~~

Current price of AK7452 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AK7452 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
For Measuring:	Angle
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	360° (±180°), Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	-
Actuator Type:	External Magnet, Not Included
Linearity:	±0.5°
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	3V ~ 5.5V
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Operating Temperature:	-40°C ~ 125°C
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOP
