SV01A103AEA01B00

SV01A103AEA01B00

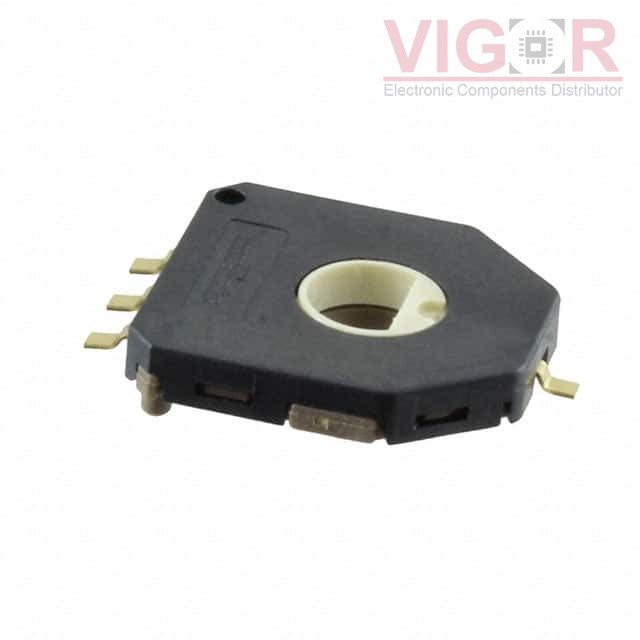

Image is for reference,
please contact us to get the real picture

Part No :

SV01A103AEA01B00

Manufacturer
TOKO / Murata
Description
SENSOR ROTARY 333.3DEG SMD
Catalog
Position Sensors - Angle, Linear Position Measuring
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
SV01A103AEA01B00 PDF
Availability
2762 pieces
Unit Price
$2.24000

Current price of SV01A103AEA01B00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SV01A103AEA01B00 Specifications
Type Description
Series:SV01
Package:Bulk
Part Status:Last Time Buy
For Measuring:Rotary Position
Technology:Resistive
Rotation Angle - Electrical, Mechanical:0° ~ 333.3°, Continuous
Linear Range:-
Output:Analog Voltage
Output Signal:-
Actuator Type:Hole for Shaft
Linearity:±2%
Resistance:10 kOhms
Resistance Tolerance:±30%
Voltage - Supply:-
Mounting Type:Surface Mount
Termination Style:SMD (SMT) Tab
Operating Temperature:-40°C ~ 85°C
Package / Case:4-SMD, Gull Wing
Supplier Device Package:-
