Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of SSCDANN015PAAA5 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | TruStability® SSC |
Package: | Bulk |
Part Status: | Active |
Applications: | Board Mount |
Pressure Type: | Absolute |
Operating Pressure: | 15PSI (103.42kPa) |
Output Type: | Analog Voltage |
Output: | 0.5 V ~ 4.5 V |
Accuracy: | ±0.25% |
Voltage - Supply: | 4.75V ~ 5.25V |
Port Size: | Male - 0.19" (4.93mm) Tube |
Port Style: | Barbed |
Features: | Amplified Output, Temperature Compensated |
Termination Style: | PC Pin |
Maximum Pressure: | 30PSI (206.84kPa) |
Operating Temperature: | -40°C ~ 85°C |
Package / Case: | 8-DIP (0.524", 13.30mm), Top Port |
Supplier Device Package: | 8-DIP |
AC/DC WALL MOUNT ADAPTER 24V 36W
SSR RELAY SPST-NO 2.5A 0-60V
CONN RCPT 5POS IDC 26AWG TIN

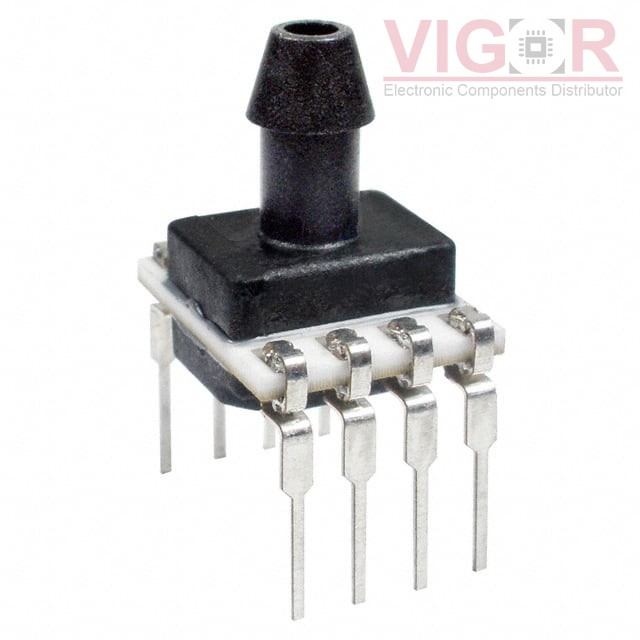

SENSOR PRES 15PSI ABSO 5V DIP
