IPC0165-S

IPC0165-S

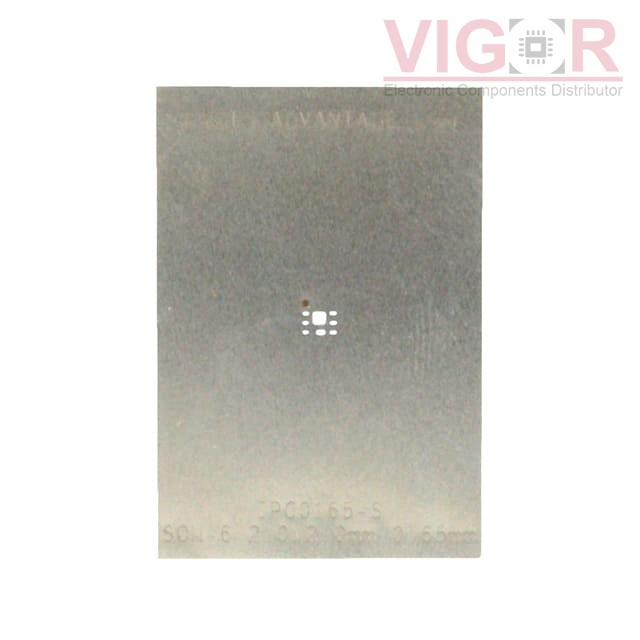

Image is for reference,
please contact us to get the real picture

Part No :

IPC0165-S

Manufacturer
Chip Quik, Inc.
Description
SON-6 (0.65MM PITCH, 2X2MM BODY)
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
IPC0165-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0165-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0165-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:SON
Number of Positions:6
Pitch:0.026" (0.65mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.079" L x 0.079" W (2.00mm x 2.00mm)
Thermal Center Pad:0.067" L x 0.041" W (1.70mm x 1.05mm)
Material:Stainless Steel
