PA0244-S

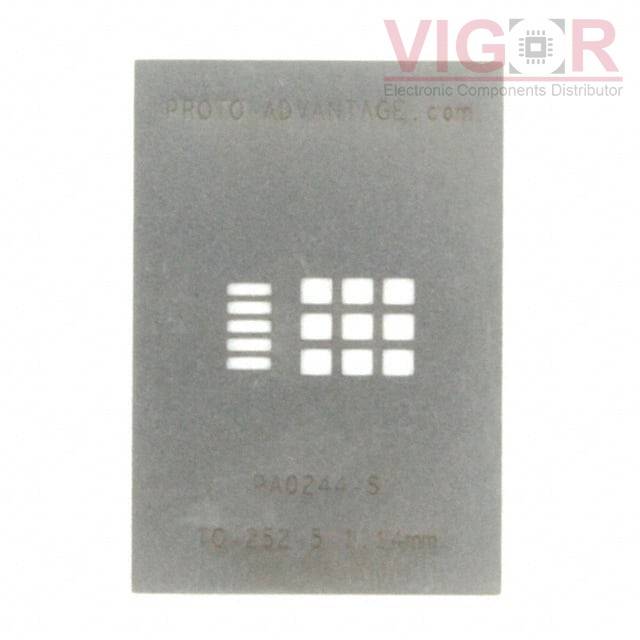

Image is for reference,
please contact us to get the real picture

Part No :

PA0244-S

Manufacturer
Chip Quik, Inc.
Description
TO-252-5 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
PA0244-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of PA0244-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Proto-Advantage PA
Package:Bulk
Part Status:Active
Type:TO/DPAK
Number of Positions:5
Pitch:0.045" (1.15mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.256" L x 0.244" W (6.50mm x 6.20mm)
Thermal Center Pad:0.276" L x 0.236" W (7.00mm x 6.00mm)
Material:Stainless Steel
