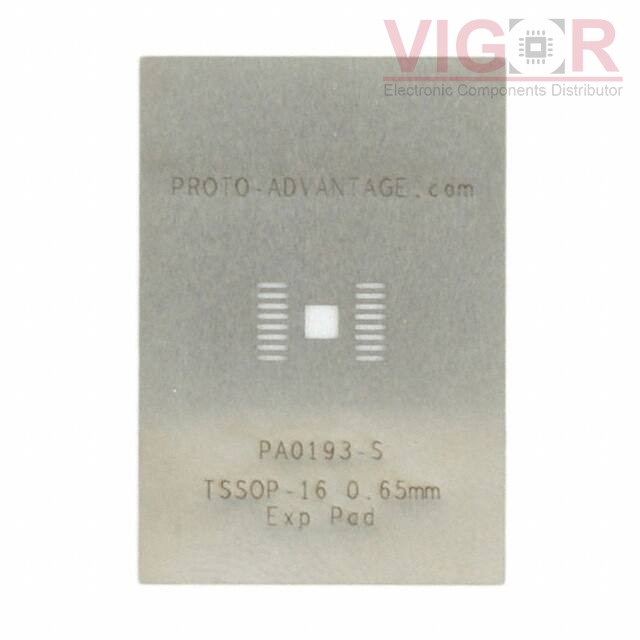

PA0193-S

PA0193-S

Image is for reference,
please contact us to get the real picture

Part No :

PA0193-S

Manufacturer
Chip Quik, Inc.
Description
TSSOP-16-EXP-PAD STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
PA0193-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of PA0193-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0193-S Specifications
Type Description
Series:Proto-Advantage PA
Package:Bulk
Part Status:Active
Type:TSSOP
Number of Positions:16
Pitch:0.026" (0.65mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.197" L x 0.173" W (5.00mm x 4.40mm)
Thermal Center Pad:0.433" L x 0.118" W (11.00mm x 3.00mm)
Material:Stainless Steel
