IPC0141-S

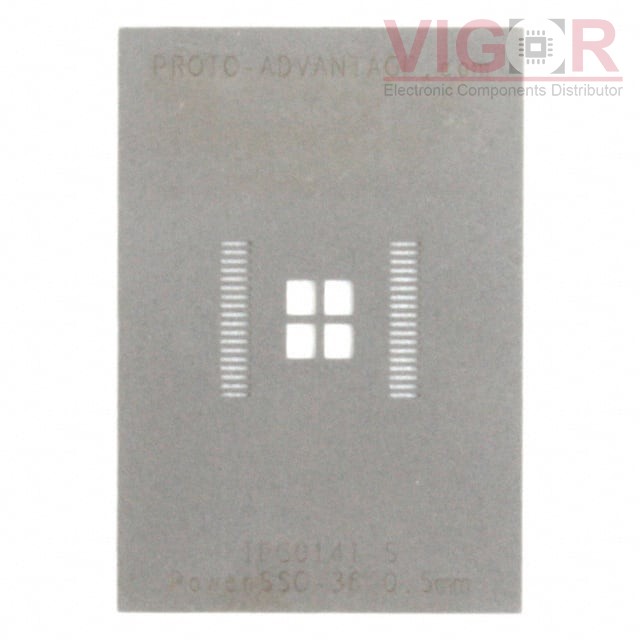

Image is for reference,
please contact us to get the real picture

Part No :: IPC0141-S

Manufacturer: Chip Quik, Inc.

Description: POWERSSO-36 STENCIL

Catalog: Solder Stencils, Templates

Shipped from: HK warehouse

Expected Shipping Date: Jul 22 - Jul 26 2025

DataSheet: IPC0141-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of IPC0141-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0141-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	PowerSSO
Number of Positions:	36
Pitch:	0.020" (0.50mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.407" L x 0.295" W (10.35mm x 7.50mm)
Thermal Center Pad:	0.217" L x 0.185" W (5.50mm x 4.70mm)
Material:	Stainless Steel

Please confirm the specifications of the products when ordering.
