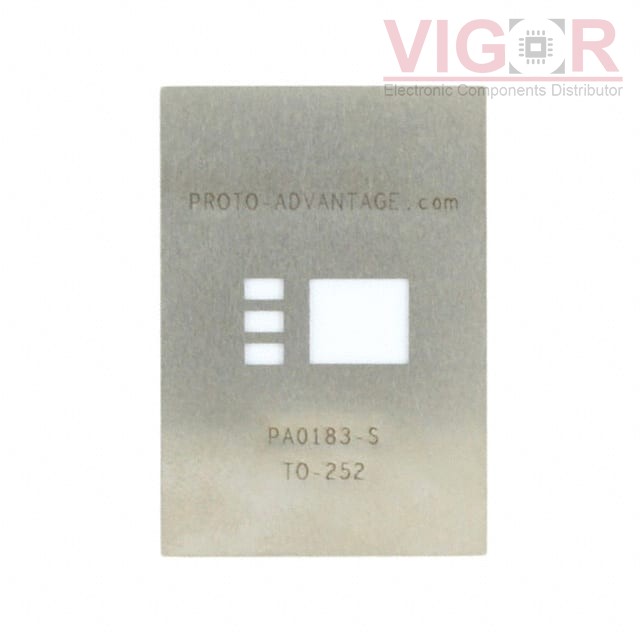

PA0183-S

Image is for reference,
please contact us to get the real picture

Part No :

PA0183-S

Manufacturer
Chip Quik, Inc.
Description
TO-252 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PA0183-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of PA0183-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Proto-Advantage PA
Package:Bulk
Part Status:Active
Type:TO/DPAK
Number of Positions:3
Pitch:0.090" (2.29mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.287" L x 0.259" W (7.30mm x 6.58mm)
Thermal Center Pad:0.276" L x 0.236" W (7.00mm x 6.00mm)
Material:Stainless Steel
