IPC0005-S

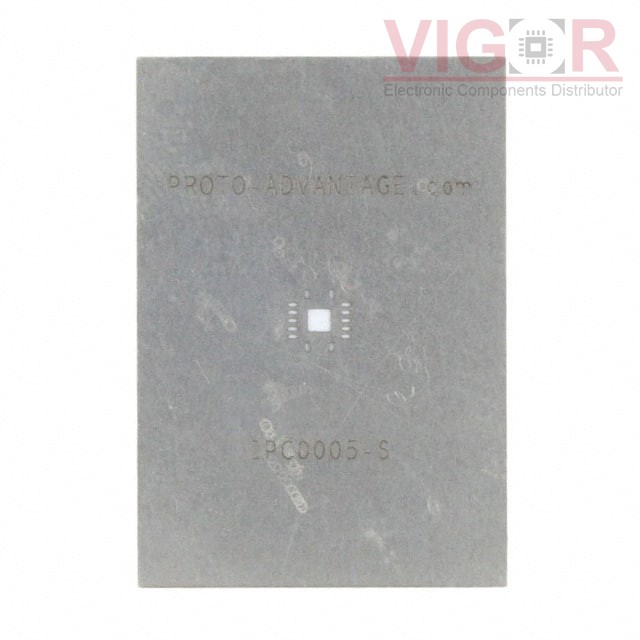

Image is for reference,
please contact us to get the real picture

Part No :

IPC0005-S

Manufacturer
Chip Quik, Inc.
Description
QFN-14 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
IPC0005-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0005-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:QFN/LFCSP
Number of Positions:14
Pitch:0.020" (0.50mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.138" L x 0.138" W (3.50mm x 3.50mm)
Thermal Center Pad:0.081" L x 0.081" W (2.05mm x 2.05mm)
Material:Stainless Steel
