PA0111-S

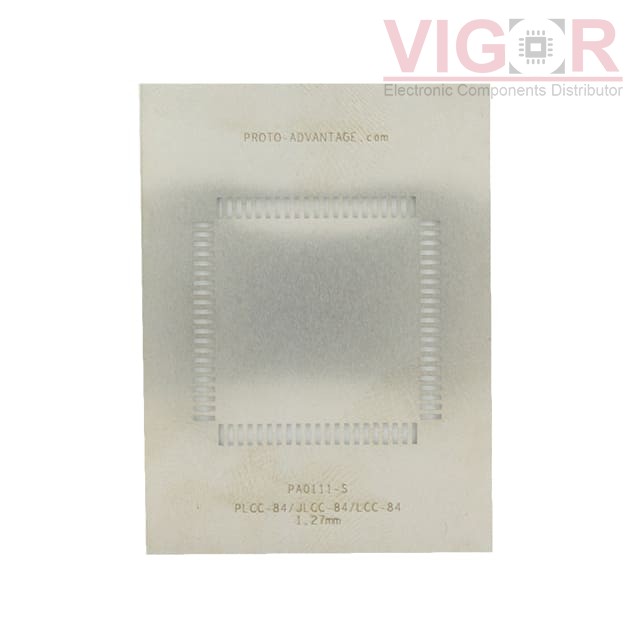

Image is for reference,
please contact us to get the real picture

Part No :: PA0111-S

Manufacturer: Chip Quik, Inc.

Description: PLCC-84/JLCC-84/LCC-84 (1.27MM P

Catalog: Solder Stencils, Templates

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: PA0111-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of PA0111-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0111-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	PLCC/JLCC
Number of Positions:	84
Pitch:	0.050" (1.27mm)
Outer Dimension:	2.600" L x 1.800" W (66.04mm x 45.72mm)
Inner Dimension:	1.181" L x 1.181" W (30.00mm x 30.00mm)
Thermal Center Pad:	-
Material:	Stainless Steel

Please confirm the specifications of the products when ordering.
