IPC0156-S

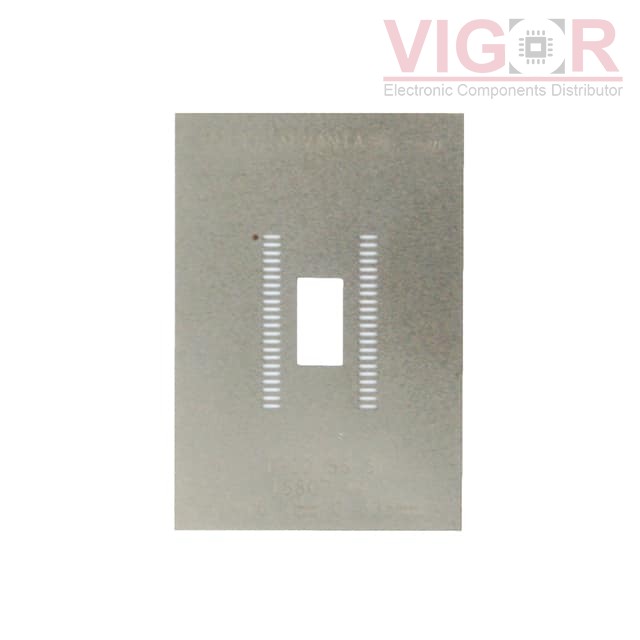

Image is for reference,
please contact us to get the real picture

Part No :: IPC0156-S

Manufacturer: Chip Quik, Inc.

Description: TSSOP-44 (0.64MM PITCH, 14X6.1MM

Catalog: Solder Stencils, Templates

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: IPC0156-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of IPC0156-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0156-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	TSSOP
Number of Positions:	44
Pitch:	0.025" (0.64mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.551" L x 0.240" W (14.00mm x 6.10mm)
Thermal Center Pad:	0.276" L x 0.157" W (7.00mm x 4.00mm)
Material:	Stainless Steel

Please confirm the specifications of the products when ordering.
