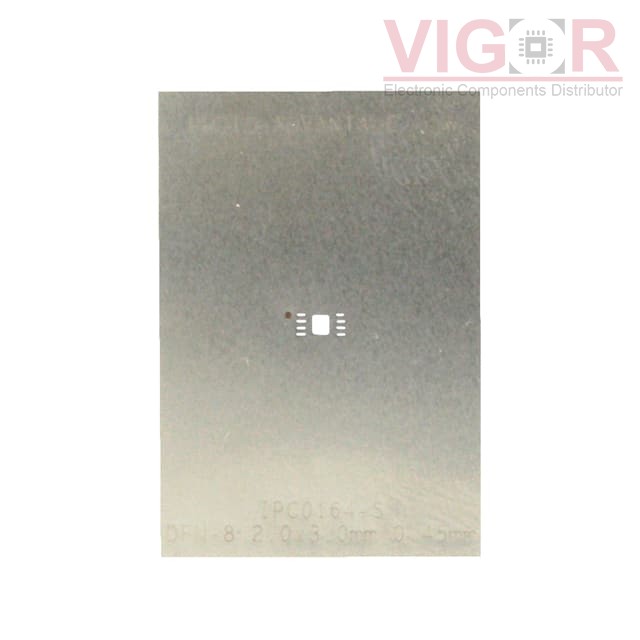

IPC0164-S

IPC0164-S

Image is for reference,
please contact us to get the real picture

Part No :

IPC0164-S

Manufacturer
Chip Quik, Inc.
Description
DFN-8 (0.45MM PITCH, 2X3MM BODY)
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IPC0164-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0164-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0164-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:DFN
Number of Positions:8
Pitch:0.018" (0.45mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.118" L x 0.079" W (3.00mm x 2.00mm)
Thermal Center Pad:0.065" L x 0.053" W (1.65mm x 1.35mm)
Material:Stainless Steel
