PA0092-S

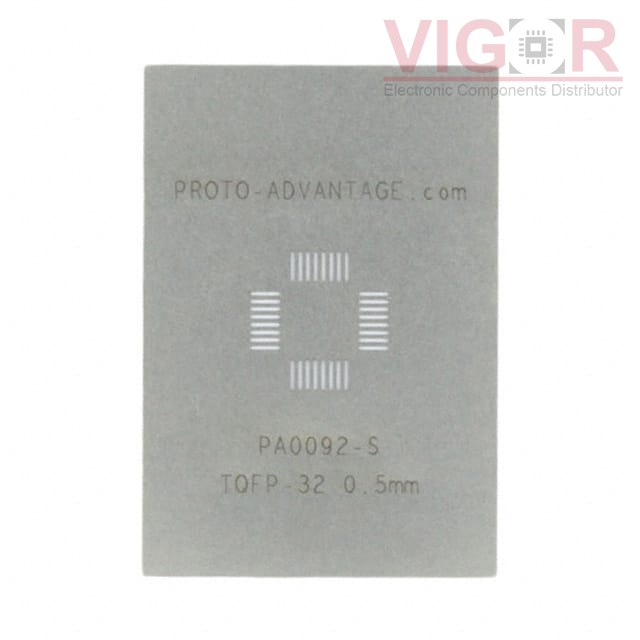

Image is for reference,
please contact us to get the real picture

Part No :: PA0092-S

Manufacturer: Chip Quik, Inc.

Description: TQFP-32 STENCIL

Catalog: Solder Stencils, Templates

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: PA0092-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of PA0092-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0092-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	TQFP
Number of Positions:	32
Pitch:	0.020" (0.50mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Thermal Center Pad:	-
Material:	Stainless Steel

Please confirm the specifications of the products when ordering.
