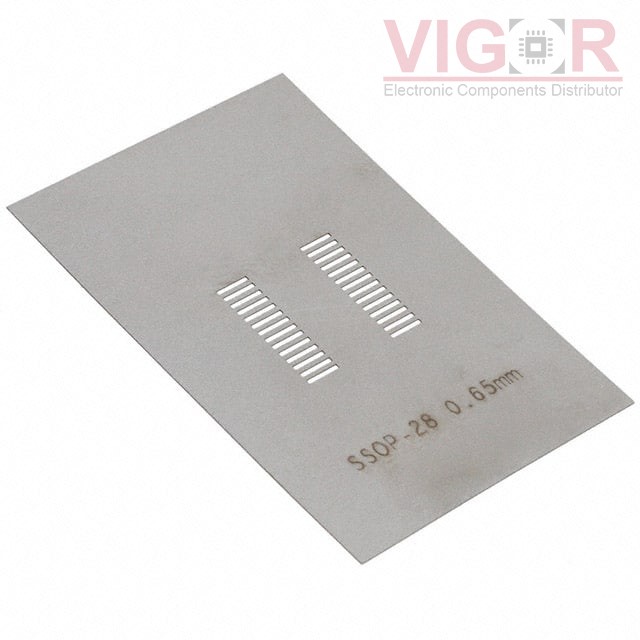

PA0020-S

Image is for reference,
please contact us to get the real picture

Part No :: PA0020-S

Manufacturer: Chip Quik, Inc.

Description: STENCIL SSOP-28 .65MM

Catalog: Solder Stencils, Templates

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: PA0020-S PDF

Availability: 11 pieces

Unit Price: ~~$11.59000~~

Current price of PA0020-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0020-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	SSOP
Number of Positions:	28
Pitch:	0.026" (0.65mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	-
Thermal Center Pad:	-
Material:	Stainless Steel
