PA0186-S

PA0186-S

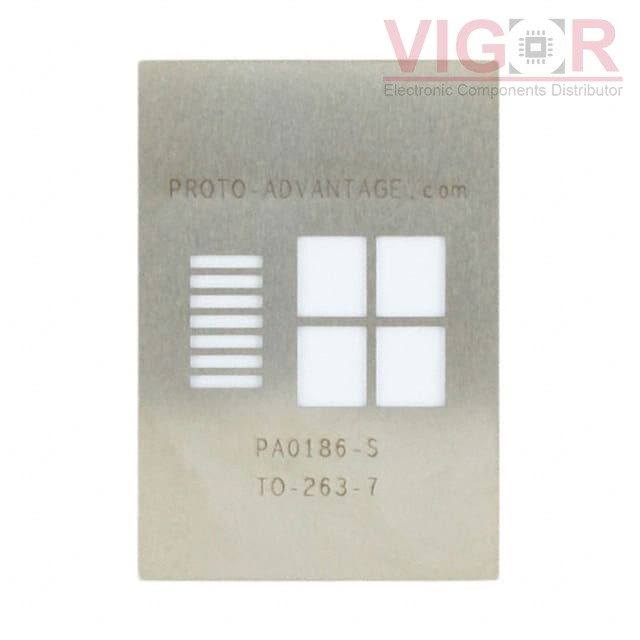

Image is for reference,
please contact us to get the real picture

Part No :

PA0186-S

Manufacturer
Chip Quik, Inc.
Description
TO-263-7 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
PA0186-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of PA0186-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0186-S Specifications
Type Description
Series:Proto-Advantage PA
Package:Bulk
Part Status:Active
Type:TO/DDPAK
Number of Positions:7
Pitch:0.050" (1.27mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.400" L x 0.390" W (10.16mm x 9.91mm)
Thermal Center Pad:0.427" L x 0.370" W (10.85mm x 9.40mm)
Material:Stainless Steel
