IPC0105-S

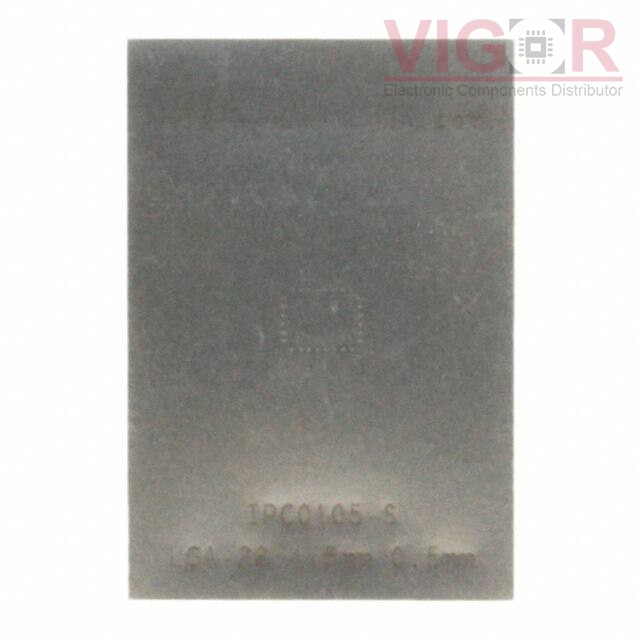

Image is for reference,
please contact us to get the real picture

Part No :

IPC0105-S

Manufacturer
Chip Quik, Inc.
Description
LGA-28 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
IPC0105-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0105-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:LGA
Number of Positions:28
Pitch:0.020" (0.50mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.197" L x 0.157" W (5.00mm x 4.00mm)
Thermal Center Pad:-
Material:Stainless Steel
