IPC0092-S

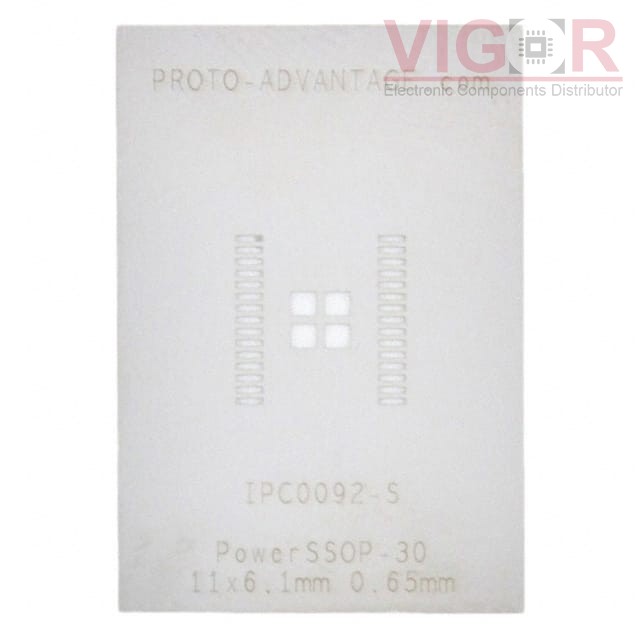

Image is for reference,
please contact us to get the real picture

Part No :

IPC0092-S

Manufacturer
Chip Quik, Inc.
Description
POWERSSOP-30 STENCIL
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
IPC0092-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0092-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:PowerSSOP
Number of Positions:30
Pitch:0.026" (0.65mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.433" L x 0.240" W (11.00mm x 6.10mm)
Thermal Center Pad:0.162" L x 0.154" W (4.11mm x 3.91mm)
Material:Stainless Steel
